Tool Group Service

Overview

The ToolGroupService is responsible for managing tool groups in the Fanoni Imaging.

tip

Read more about toolGroups here

It allows you to create, update, and manage tool groups and the tools associated with them. Tool groups are used to organize and control the behavior of various tools in the viewer, such as window level, pan, zoom, measurements, and annotations.

Events

The ToolGroupService emits the following events:

Event	Description
VIEWPORT_ADDED	Fires when a viewport is added to a tool group
TOOLGROUP_CREATED	Fires when a new tool group is created

API

• getToolGroup(toolGroupId?): Retrieves a tool group by its ID. If no ID is provided, it returns the tool group for the active viewport.
• getToolGroupIds(): Returns an array of all tool group IDs.
• getToolGroupForViewport(viewportId): Returns the tool group associated with the specified viewport.
• getActiveToolForViewport(viewportId): Returns the active tool for the specified viewport.
• destroy(): Destroys all tool groups.
• destroyToolGroup(toolGroupId): Destroys the specified tool group.
• removeViewportFromToolGroup(viewportId, renderingEngineId, deleteToolGroupIfEmpty?): Removes a viewport from a tool group. If deleteToolGroupIfEmpty is true and the tool group becomes empty after removing the viewport, it will be destroyed.
• addViewportToToolGroup(viewportId, renderingEngineId, toolGroupId?): Adds a viewport to a tool group. If toolGroupId is not provided, the viewport will be added to all tool groups.
• createToolGroup(toolGroupId): Creates a new tool group with the specified ID.
• addToolsToToolGroup(toolGroupId, tools, configs?): Adds tools to the specified tool group with optional configurations.
• createToolGroupAndAddTools(toolGroupId, tools): Creates a new tool group and adds the specified tools to it.
• getToolConfiguration(toolGroupId, toolName): Retrieves the configuration for the specified tool in the given tool group.
• setToolConfiguration(toolGroupId, toolName, config): Sets the configuration for the specified tool in the given tool group.
• getActivePrimaryMouseButtonTool(toolGroupId?): Returns the active primary mouse button tool for the specified tool group, or for the active viewport's tool group when omitted.
• getToolBindings(toolGroupId, toolName): Returns the bindings from the service's internal binding map for the specified tool in the given tool group.
• setToolBindings(toolGroupId, toolName, bindings): Updates the service's internal binding map for the specified tool in the given tool group. This does not change the tool's active runtime mode by itself.
• getAllToolBindings(): Returns all bindings currently stored in the service's internal binding map across tool groups.
• getDefaultToolBindings(toolGroupId, toolName): Returns the default bindings captured when the tool group was initialized.
• applyToolBindings(toolGroupId, toolName, options?): Reads the currently tracked bindings for that tool and applies them to the underlying runtime tool instance (via tool activation). This can activate tools that are currently Passive or Enabled, since assigning bindings is treated as making the tool interactable. Use this after setToolBindings when you want runtime behavior to update. Set options.replaceExisting to true to clear previous active bindings before applying.
• persistToolBindings(toolGroupId, toolName, bindings): Persists tool bindings for a specific tool in a tool group to user preferences storage.
• removePersistedToolBindings(toolGroupId, toolName?): Removes persisted tool bindings for a specific tool, or for the whole tool group when toolName is omitted.

Usage

Here's an example of how to create a new tool group and add tools to it in our basic viewer mode (modes/longitudinal/src/initToolGroups.js)

import { initToolGroups } from '@ohif/extension-cornerstone';
import { ToolGroupService } from '@ohif/core';

const toolGroupService = new ToolGroupService();

// Create a new tool group
const defaultToolGroup = toolGroupService.createToolGroup('default');

// Define tools for the tool group
const tools = {
  active: [
    { toolName: 'WindowLevel', bindings: [{ mouseButton: 1 }] },
    { toolName: 'Pan', bindings: [{ mouseButton: 2 }] },
    { toolName: 'Zoom', bindings: [{ mouseButton: 3 }] },
  ],
  passive: [
    { toolName: 'Length' },
    { toolName: 'ArrowAnnotate' },
    { toolName: 'Bidirectional' },
  ],
};

// Add tools to the tool group
toolGroupService.addToolsToToolGroup('default', tools);

In this example, we create a new ToolGroupService instance and use it to create a new tool group with the ID 'default'. We then define an object tools that contains the active and passive tools we want to add to the tool group. Finally, we call the addToolsToToolGroup method to add the tools to the newly created tool group.

tip

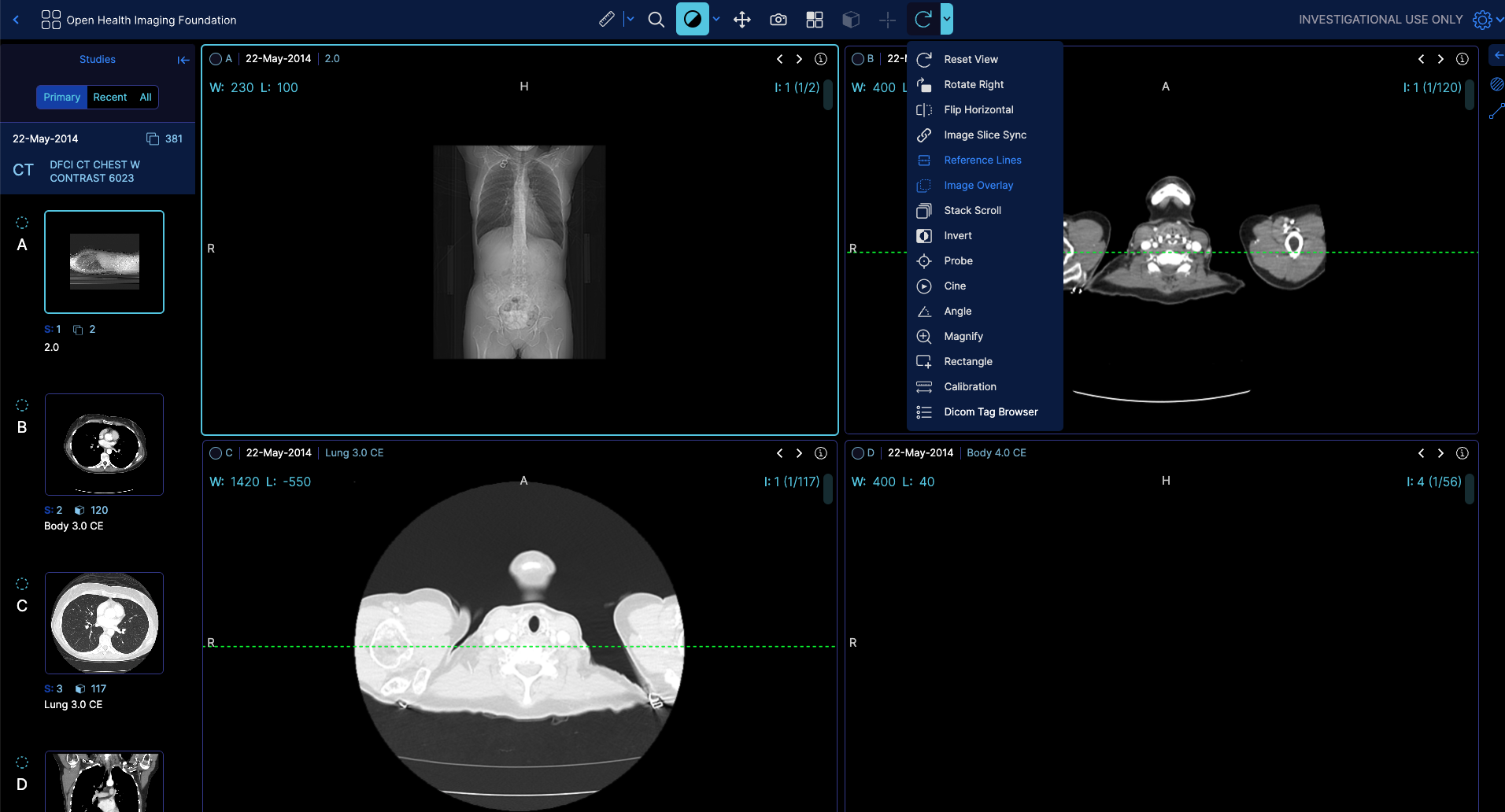

You can begin the viewer with certain toggle tools already active. For example, if you have your 'referencelines' tool enabled, it will be active when the viewer starts, and the icon state will be correctly set to active as well.

const tools = {
    // the reset
    // enabled
    enabled: [{ toolName: toolNames.ImageOverlayViewer }, { toolName: toolNames.ReferenceLines }],
  };
